General Trace Detection
State-of-the-art Trace Detection – rapid scanning for explosive sand narcotics.

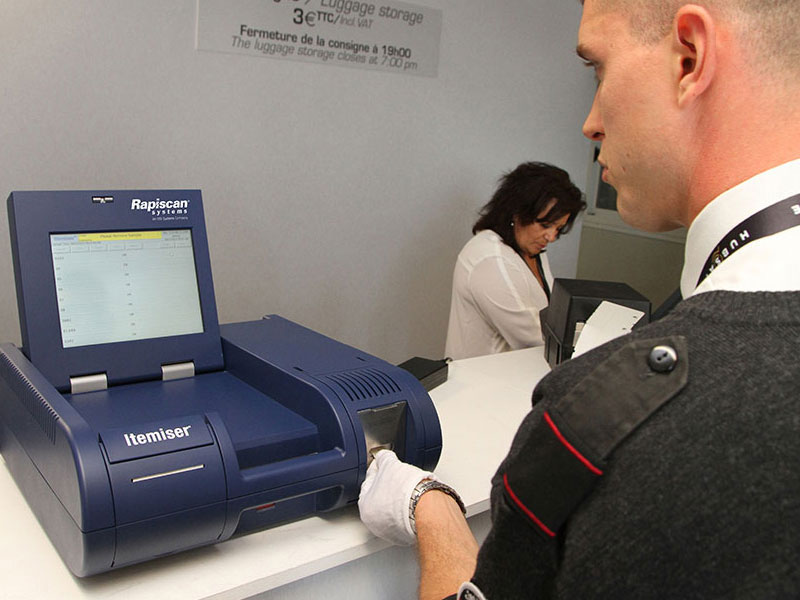

ARCDG Rapiscan Itemiser 4DX
Aviation approved non-radioactive-based explosives and narcotics detection.
Using a non-radioactive ionization source and simultaneous, dual-mode detection, Itemiser® 4DX can detect a broad range of current market threat explosives and narcotics without the use of a radioactive source, thereby eliminating the need for annual wipe tests and licensing while reducing shipping challenges.
The portable, ergonomic desktop unit features automated internal calibration to help decrease consumables cost, optimize ongoing equipment operation and increase detection accuracy.
- Simultaneous detection of Explosive and Narcotics in 8 seconds
- Non-Radioactive Ionisation source
- Increased usability, inproved operational and detection accuracy
- Remote Monitoring capability via Remote Connect
- Push-button, schedulable automated maintenance
COST EFFECTIVE
- Automated internal calibration eliminates cost of purchasing and managing calibration traps.
- Folding monitor screen automatically shuts off backlight to extend life of display.
- Regenerative dryer increases uptime and eliminates cost of monthly dryer material replacements.
- Decreases labor required to initiate and manage maintenance.
RELIABLE
- Simultaneous dual mode detection by using one detector significantly decreases the possibility of mechanical failure associated with two detector systems.
- Maintains a low, stable humidity level in the detector, allowing for consistent and reliable detection results.
- Automatically saves test results, preventing deletions.
- Robust internal solid-state hard drive for reliable data storage.
- Optional maintenance reminders for all preventive requirements.
- Advanced diagnostics to ensure maximum availability and performance.
EASE OF USE
- Non-radioactive ionization source removes shipping restrictions and licensing requirements.
- Built in printer for fast hard copy results or printing later.
- Quick analysis and results in approximately 8 seconds.
- On-board software keypad and help files.
- Automated, push-button maintenance can be scheduled.
- Easily accessible maintenance items.
- Ability to create custom substance libraries.
EASY-TO-USE OPERATOR INTERFACE
- Results require minimal interpretation, allowing operators to concentrate on sample acquisition.
- Onboard computer automatically logs all data, including time, date, sample analysis and system status.
- A comprehensive history of saved data and alarm files can be recalled and printed.
PORTABILITY
- Lightweight (28.65 lb/12.99 kg) with built-in handle for easy transport.
- Internal, one-hour battery allows instrument relocation without shut off, eliminating warmup time.
ARCDG supplied Detection IONSCAN 600
Supplied by ARC Detection Group, the IONSCAN 600 is a highly sensitive, non-radioactive, lightweight, portable desktop system that detects and identifies trace amounts of explosives and narcotics.
The IONSCAN 600 is a highly sensitive trace detector, in a lightweight, portable desktop configuration. It can be used to accurately detect and identify a wide range of military, commercial and homemade explosives threats and common illegal/controlled narcotics, including the highly potent synthetic fentanyl opioids that are rapidly spreading across the world.
The compact, lightweight IONSCAN 600 is easily portable; it includes hot-swappable batteries for full operation even when mains power is not available. The unit can be relocated while fully operational (without any downtime) enabling it to be used in a much broader range of screening environments.
It features a proprietary non-radioactive ion mobility spectrometry (IMS) source, which means licensing from national nuclear regulatory agencies is not required. This allows the detector to be used without time-consuming radiation testing and administration, and enables easy licence-free transport from location to location.
The IONSCAN 600 is unique in working with cost-effective, single-use swabs suitable for both manual and wand sampling. Designed for efficient trace-particle pick-up, these proprietary swabs reduce contamination risk and offer the most hygienic method for sampling a person’s hands.
- Detection and identification in less than 8 seconds
- Detects and identifies explosives and narcotics
- Non-radioactive IMS source
- Small, lightweight and portable
- Optional integrated printer
- Single use, disposable sampling swabs
- Approved/certified by ECAC and CAAC
